Mouse SIRP alpha/CD172a Protein, Ultra Low Endotoxin
Catalog No: SIRPA-MP002
- Species
- Mouse
- Expression System
- HEK293
- Tag
- His
- Activity
- Activity verified
Product overview
Recombinant Mouse SIRP alpha/CD172a Protein is expressed in HEK293 cells with a His tag at the C-terminus. It contains amino acid residues Lys32-Asn373 (accession: BAA13520.1).
Product Details
- Molecular Aliases
- CD172a; BIT; MFR; MYD1; MYD-1; P84; PTPNS1; SHPS1; SHPS-1; SIRP alpha; SIRPA
- Protein Length
- Lys32-Asn373
- Expression System
- HEK293
- Theoretical Molecular Weight
- The protein has a predicted MW of 39 kDa. Due to glycosylation, the protein migrates to 65-85 kDa based on Bis-Tris PAGE result.
- Purity
- > 95% as determined by Bis-Tris PAGE > 95% as determined by HPLC
- Endotoxin
- Less than 0.01 EU per μg by the LAL method.
- Buffer / Formulation
- Lyophilized from 0.22μm filtered solution in PBS (pH 7.4). Normally 8% trehalose is added as protectant before lyophilization.
- State
- Lyophilized
- Storage Conditions
- -20 to -80°C for 12 months as supplied from date of receipt. -80°C for 3 months after reconstitution. Recommend to aliquot the protein into smaller quantities for optimal storage. Please minimize freeze-thaw cycles.
- Reconstitution Advice
- Dissolve the lyophilized protein in distilled water. Please refer to the Certificate of Analysis for detailed instructions.
Data Display

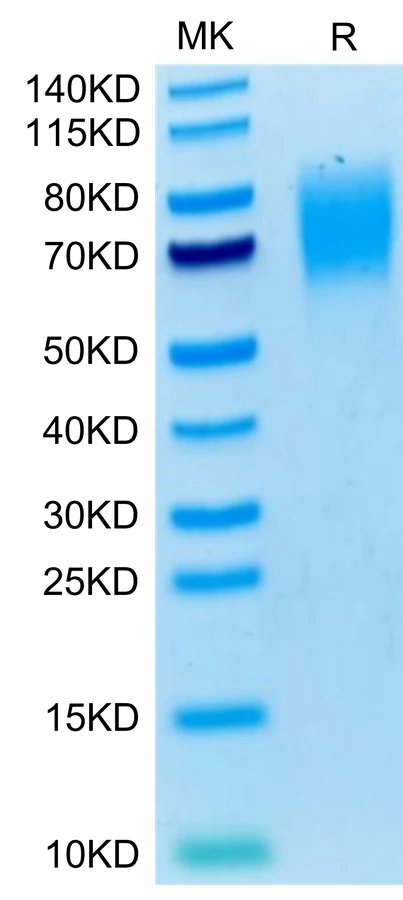

Mouse SIRP alpha on Bis-Tris PAGE under reduced condition. The purity is greater than 95%.
The purity of Mouse SIRP alpha is greater than 95% as determined by SEC-HPLC.

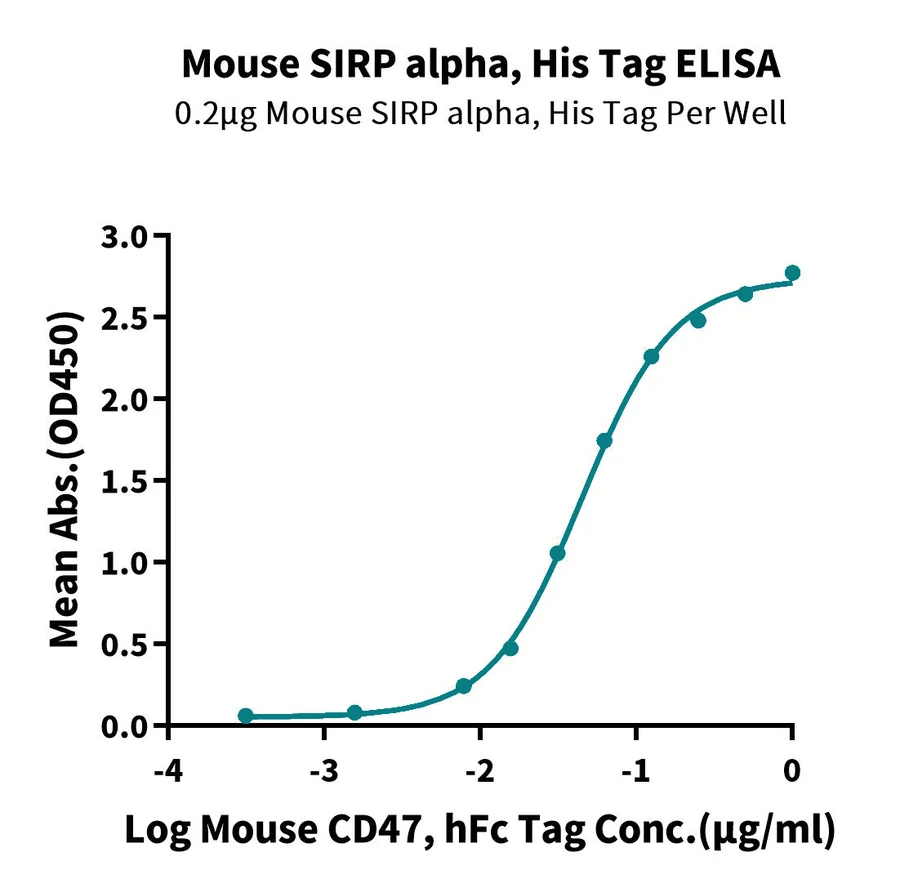

Immobilized Mouse SIRP alpha, His Tag at 2μg/ml (100μl/well) on the plate. Dose response curve for Mouse CD47, hFc Tag with the EC50 of 44.8ng/ml determined by ELISA (QC Test).

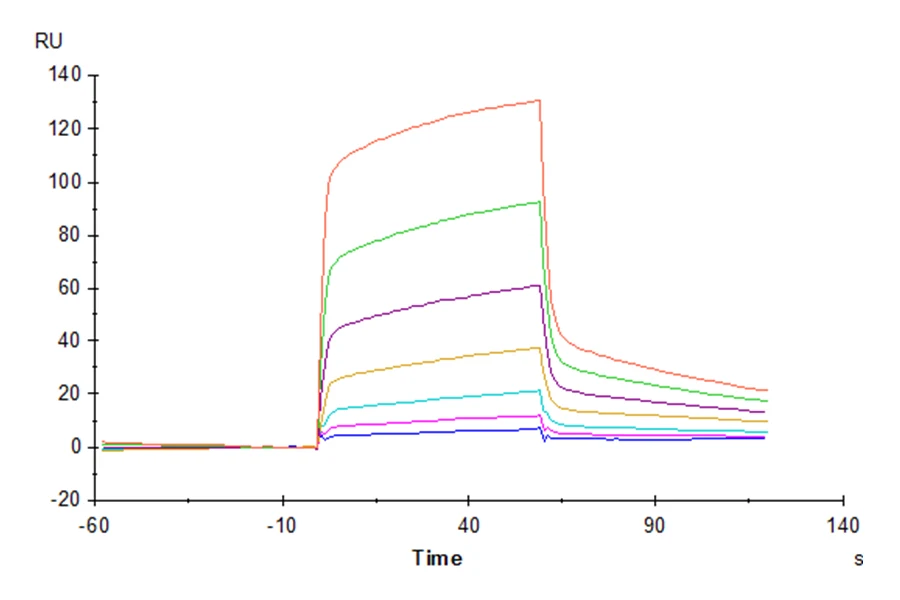

Mouse SIRP alpha, His Tag immobilized on CM5 Chip can bind Mouse CD47, His Tag with an affinity constant of 1.33 μM as determined in SPR assay (Biacore T200).
Background
Signal regulatory protein α (SIRPα) is a regulatory membrane glycoprotein from SIRP family expressed mainly by myeloid cells and also by stem cells or neurons.SIRPα acts as inhibitory receptor and interacts with a broadly expressed transmembrane protein CD47 also called the "don´t eat me" signal.Cancer cells highly expressed CD47 that activate SIRP α and inhibit macrophage-mediated destruction.
References
- Weiskopf K, Ring A M, Ho C C M, et al. Engineered SIRP? Variants as Immunotherapeutic Adjuvants to Anticancer Antibodies[J]. Science, 2013, 341(6141):88-91. Note: HPLC results always come from liquid protein, due to absorption peak interference of trehalose in lyophilized powder.
