Mouse PD-L1/B7-H1 Protein
Catalog No: PDL1-MP001
- Species
- Mouse
- Expression System
- HEK293
- Tag
- His
- Activity
- Activity verified
Product overview
Recombinant Mouse PD-L1/B7-H1 Protein is expressed in HEK293 cells with a His tag at the C-terminus. It contains amino acid residues Phe19-Thr238 (accession: NP_068693).
Product Details
- Molecular Aliases
- CD274; PDL1; PD-L1; PD-L1B7 homolog 1;B7-H; B7H1; B7-H1; PDCD1L1; PDCD1LG1
- Protein Length
- Phe19-Thr238
- Expression System
- HEK293
- Theoretical Molecular Weight
- The protein has a predicted MW of 25.9 kDa. Due to glycosylation, the protein migrates to 45-60 kDa based on Bis-Tris PAGE result.
- Purity
- > 95% as determined by Bis-Tris PAGE > 95% as determined by HPLC
- Endotoxin
- Less than 1 EU per μg by the LAL method.
- Buffer / Formulation
- Lyophilized from 0.22μm filtered solution in PBS (pH 7.4). Normally 8% trehalose is added as protectant before lyophilization.
- State
- Lyophilized
- Storage Conditions
- -20 to -80°C for 12 months as supplied from date of receipt. -80°C for 3 months after reconstitution. Recommend to aliquot the protein into smaller quantities for optimal storage. Please minimize freeze-thaw cycles.
- Reconstitution Advice
- Dissolve the lyophilized protein in distilled water. Please refer to the Certificate of Analysis for detailed instructions.
Data Display

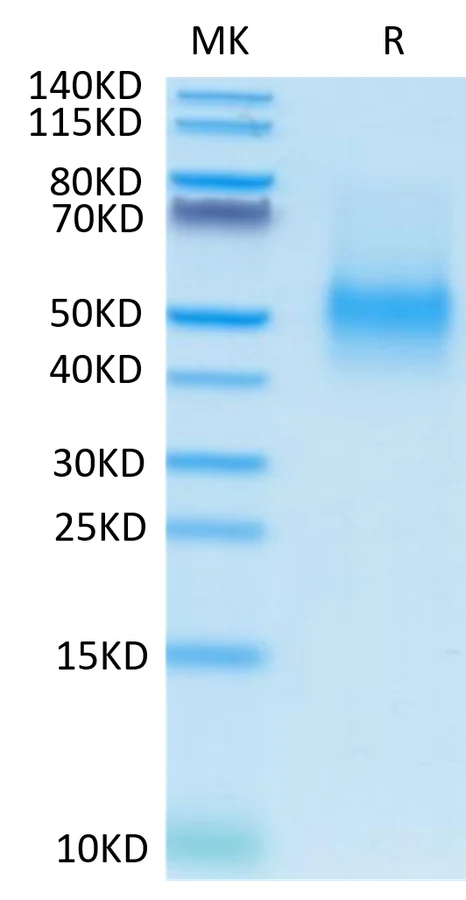

Mouse PD-L1 on Bis-Tris PAGE under reduced condition. The purity is greater than 95%.
The purity of Mouse PD-L1 is greater than 95% as determined by SEC-HPLC.

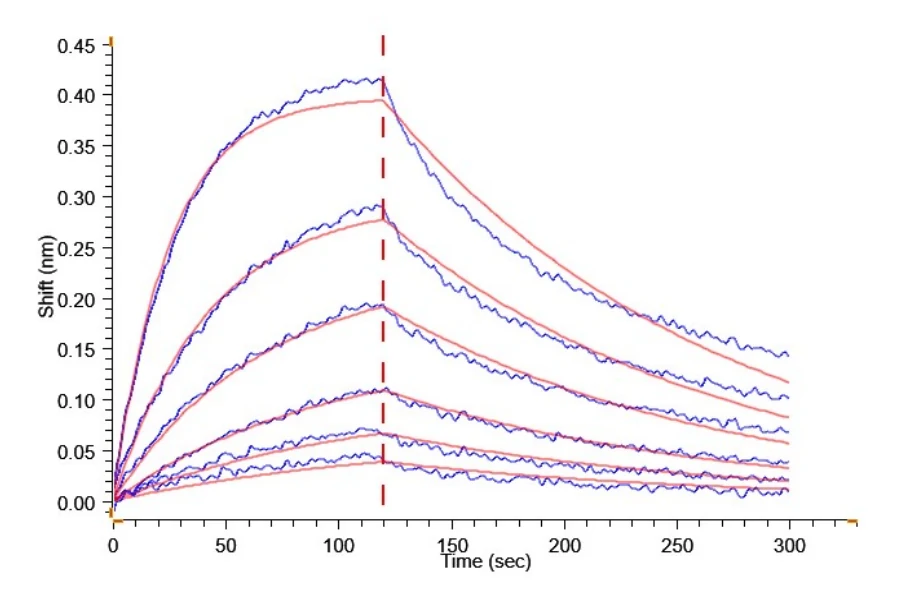

Loaded Mouse PD-L1, His Tag on Anti-His-Biosensor can bind Mouse PD-1, hFc Tag (Cat. PD1-MM201) with an affinity constant of 0.20 µM as determined in BLI assay. (QC Test)

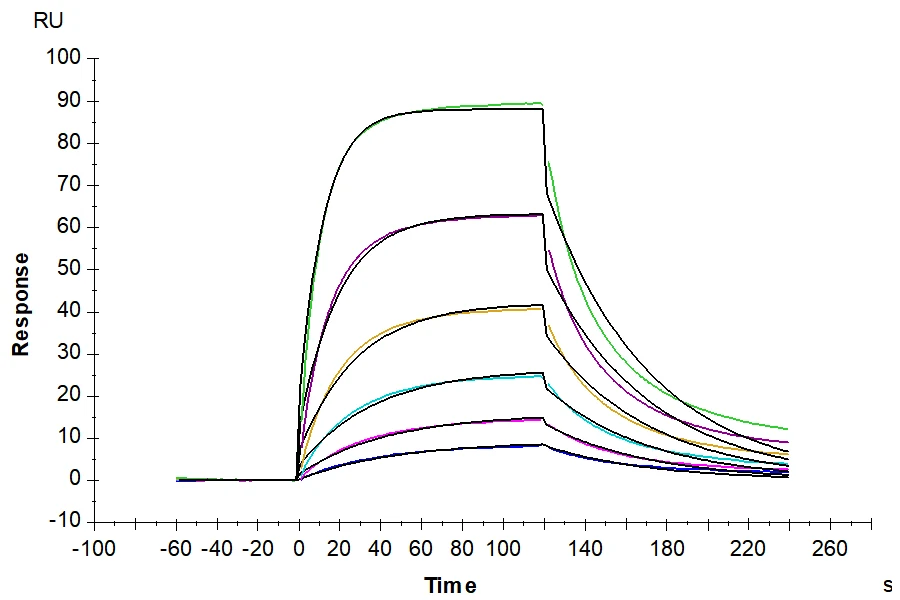

Mouse PD-L1, His Tag captured on CM5 Chip via anti-his antibody can bind Mouse PD-1, hFc Tag (Cat. PD1-MM201) with an affinity constant of 0.62 μM as determined in SPR assay (Biacore T200).
Background
B7-H1, also known as PD-L1 and CD274, is an approximately 65 kDa transmembrane glycoprotein in the B7 family of immune regulatory molecules. PD-L1 has been identified as the ligand for the immunoinhibitory receptor programmed death-1(PD1/PDCD1) and has been demonstrated to play a role in the regulation of immune responses and peripheral tolerance.
References
- Blank C, Mackensen A. Contribution of the PD-L1/PD-1 pathway to T-cell exhaustion: an update on implications for chronic infections and tumor evasion[J]. Cancer Immunology Immunotherapy, 2007, 56(5):739-745. Note: HPLC results always come from liquid protein, due to absorption peak interference of trehalose in lyophilized powder.
