Human CD3E&CD3D/CD3 epsilon&CD3 delta Protein
Catalog No: CD3ED-HP002
- Species
- Human
- Expression System
- HEK293
- Tag
- Fc
- Activity
- Activity verified
Product overview
Recombinant Human CD3E&CD3D/CD3 epsilon&CD3 delta Protein is expressed in HEK293 cells with an hFc (IgG1) at the C-terminus of CD3E and CD3D. It contains amino acid residues Asp23-Asp126(CD3E) and Phe22-Ala105(CD3D) (accession: P07766(CD3E) & P04234(CD3D)).
Product Details
- Molecular Aliases
- CD3; CD3e; CD3E; CD3d; T3D; CD3D; CD3E&CD3D; CD3 delta&CD3 epsilon
- Protein Length
- Asp23-Asp126
- Expression System
- HEK293
- Theoretical Molecular Weight
- The protein has a predicted MW of 37.8 kDa (CD3E) and 35.4 kDa (CD3D). Due to glycosylation, the protein migrates to 48-58 kDa (CD3E) and 42-48 kDa (CD3D) based on Bis-Tris PAGE result.
- Purity
- > 95% as determined by Bis-Tris PAGE > 90% as determined by HPLC
- Endotoxin
- Less than 1 EU per μg by the LAL method.
- Buffer / Formulation
- Lyophilized from 0.22μm filtered solution in PBS (pH 7.4). Normally 8% trehalose is added as protectant before lyophilization.
- State
- Lyophilized
- Storage Conditions
- -20 to -80°C for 12 months as supplied from date of receipt. -80°C for 3 months after reconstitution. Recommend to aliquot the protein into smaller quantities for optimal storage. Please minimize freeze-thaw cycles.
- Reconstitution Advice
- Dissolve the lyophilized protein in distilled water. Please refer to the Certificate of Analysis for detailed instructions.
Data Display

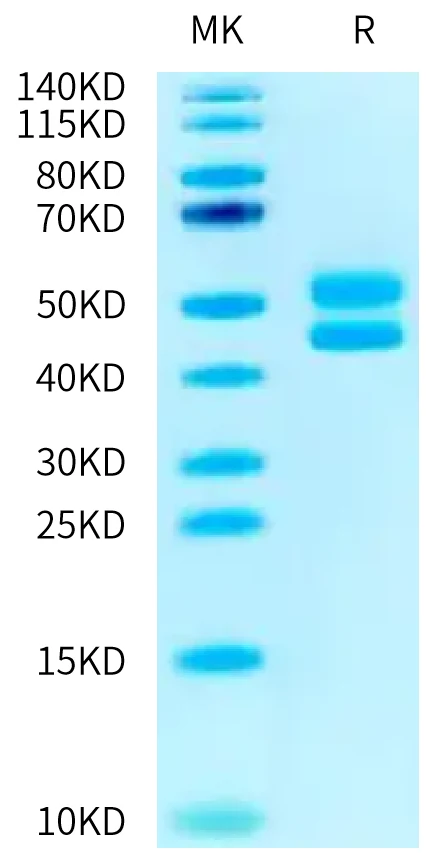

Human CD3E&CD3D on Bis-Tris PAGE under reduced condition. The purity is greater than 95%.
The purity of Human CD3E&CD3D was greater than 90% as determined by SEC-HPLC.

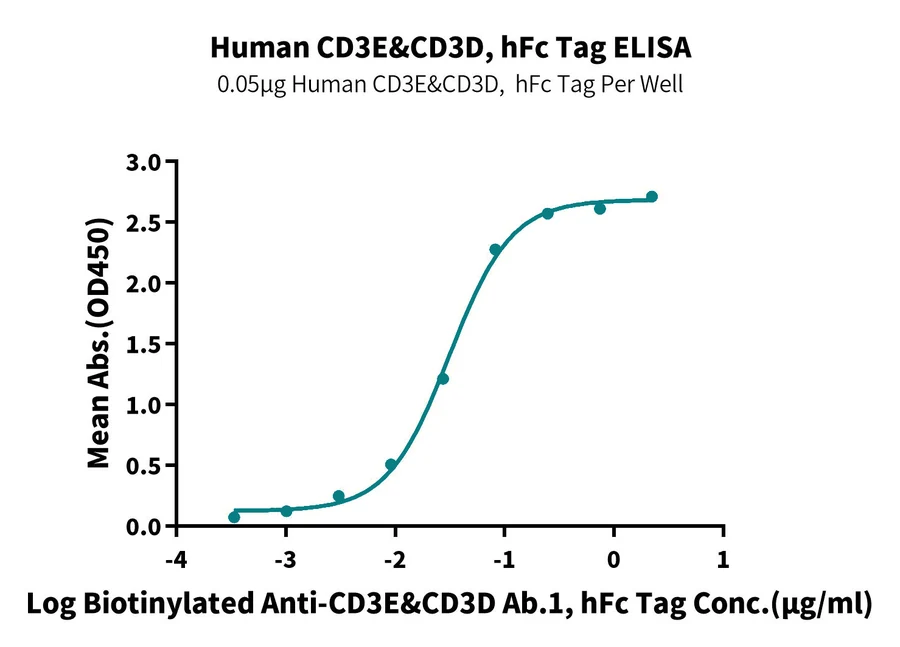

Immobilized Human CD3E&CD3D, hFc Tag at 0.5μg/ml (100μl/Well). Dose response curve for Biotinylated Anti-CD3E&CD3D Ab.1, hFc Tag with the EC50 of 31.3ng/ml determined by ELISA.

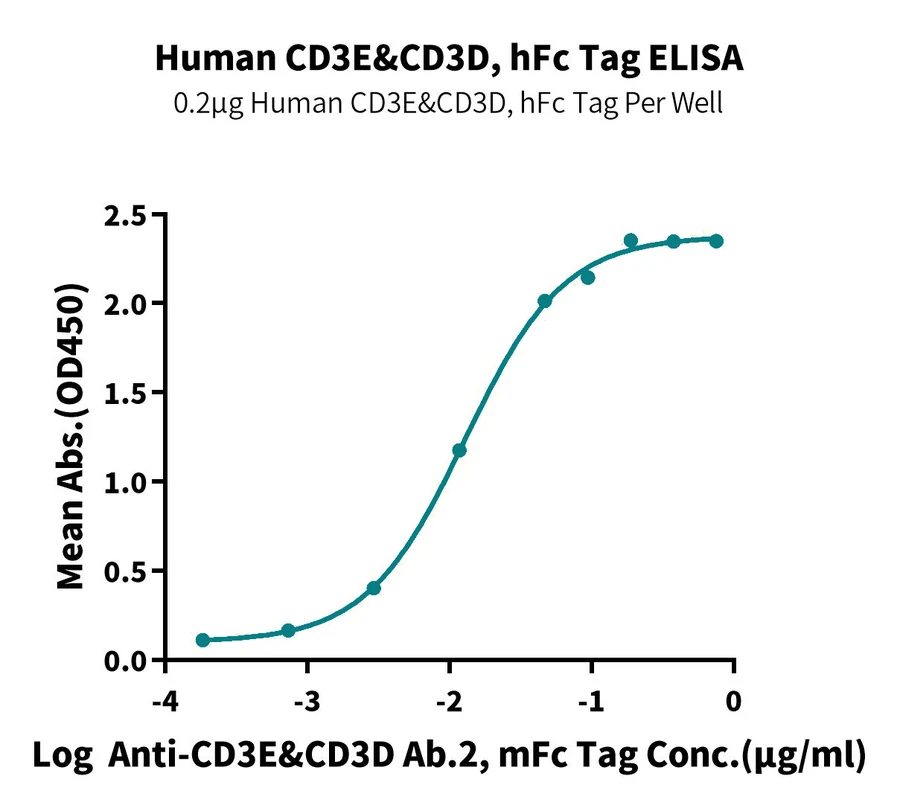

Immobilized Human CD3E&CD3D, hFc Tag at 2μg/ml (100ul/Well). Dose response curve for Anti-CD3E&CD3D Ab.2, mFc Tag with the EC50 of 12.9ng/ml determined by ELISA (QC Test).

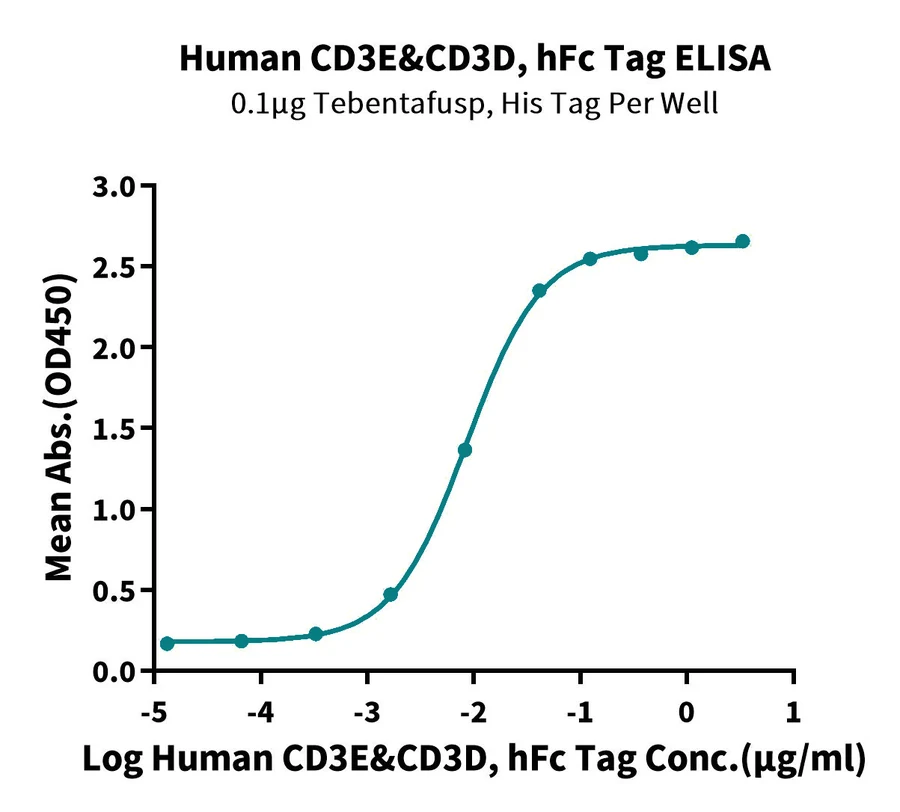

Immobilized Tebentafusp, His Tag at 1μg/ml (100μl/well) on the plate. Dose response curve for Human CD3E&CD3D, hFc Tag with the EC50 of 8.7ng/ml determined by ELISA.
Background
T-cell surface glycoprotein CD3 epsilon & CD3 delta chain, also known as CD3E & CD3D, are single-pass type I membrane proteins.When antigen presenting cells (APCs) activate T-cell receptor (TCR), TCR-mediated signals are transmitted across the cell membrane by the CD3 chains CD3D, CD3E, CD3G and CD3Z. All CD3 chains contain immunoreceptor tyrosine-based activation motifs (ITAMs) in their cytoplasmic domain.
References
- Penaranda C, Tang Q, Bluestone J A. Anti-CD3 Therapy Promotes Tolerance by Selectively Depleting Pathogenic Cells while Preserving Regulatory T Cells[J]. The Journal of Immunology, 2011, 187(4):2015-2022.
- Gedeon P C, Schaller T H, Chitneni S K, et al. A rationally designed fully human EGFRvIII:CD3-targeted bispecific antibody redirects human T cells to treat patient-derived intracerebral malignant glioma.[J]. Clinical Cancer Research, 2018:clincanres.0126.2017.
